UFC Tubed Closure : UFCTB-CXDCHCX

C Length Double StackNimikenumero: 857-00763

Ominaisuudet ja edut

  • Maximum 864 fibre splice capacity when using NZDF SE-A trays
  • 28 round ports and 2 oval ports
  • Accommodates Hellipse NZDF SE-A or SMF SE-A trays
  • Maximum 24 splices per tray without double stacking (SMF SE-A trays)
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional flash test valve and/or grounding feed-through
Colour Black (BK)
Content UFC Base
Anchor Rings (Inner and Outer)
C-Length Cover (Dome)
Quick Release Clamp
Sealing ‘O’ Ring
Tray Support Frame
Anchor Fixing Kit (3)
Tray Tool
Hook and Loop Tray Securing Strap
Transportation Tubing
Tubefix – Tube to Tray Securing Blocks
Hook and Loop Management Ties
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Marker Kit
Red Marker 1 – 144
Green Marker 1 – 144
Cover Type C
Method of Sealing Cablelok
Package Content in kit
PART DESCRIPTION UFCTB-CXDCHCX
Port L, LM, T, S, B
Port count 1, 1, 2, 10, 16
Product Family C Length Double Stack
Product Group UFC Tubed Closure
Qty Trays 72

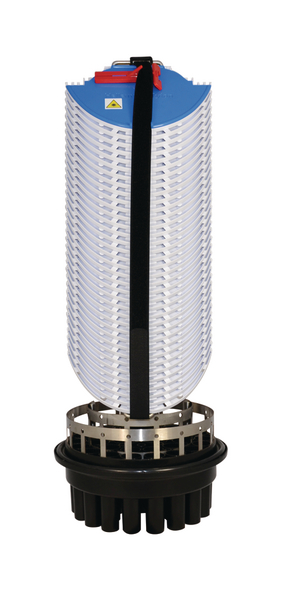

Technical Description The UFC C Length Double Stacked closure is available with a Cablelok (Polypropylene) or Heatshrink (Flame Retardant Polypropylene) base. The base configuration of 28 round ports and 2 oval ports covers a cable diameter range of 4.0 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting and support system is manufactured from Grade 304 stainless steel and can accommodate up to 72 Hellipse NZDF SE-A or SMF SE-A trays giving a maximum of 864 fibre splices based on 12 fibres per tray (when using Hellipse NZDF SE-A trays). The tubed closure and position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
Type of Tray Hellipse SMF SE-A
Length (mm) 749mm
Width D1 275mm
Width D2 310mm
Country of Origin GB
GTIN-13 / EAN 5022660112164
ETIM 7.0 Key EC001124
