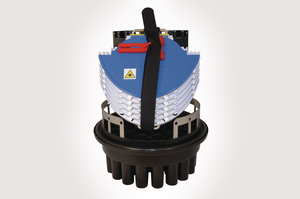

UFC Tubed Closure : UFCTB-AXBHH1X

A Length Single Stack with BasketNimikenumero: 857-00696

Ominaisuudet ja edut

  • Maximum 72 fibre splice capacity
  • 28 Round Ports and 2 Oval Ports
  • Maximum of 6 x Hellipse NZDF SE-A or SMF SE-A trays
  • Fibre storage basket for loop through applications
  • Maximum 24 splices per tray without double stacking (SMF SE-A trays)
  • Splitter accommodation
  • Support ring allows manifolds to be secured within the closure
  • Cablelok™ ready
  • Quick Release Cover
  • Optional Flash Test Valve and/or Grounding Feed-Through
Colour Black (BK)
Content UFC Base
Anchor Rings (Inner and Outer)
A-Length Cover (Dome)
Quick Release Clamp
Sealing ‘O’ Ring
Fibre Storage Basket
Tray Support Frame
Anchor Fixing Kit (3)
Tray Tool
Hook and Loop Tray Securing Straps
Transportation Tubing
Tubefix – Tube to Tray Securing Blocks
Hook and Loop Management Ties
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Marker Kit
Red Marker 1 – 12
Green Marker 1 – 12
Cover Type A
Method of Sealing Cablelok, Heatshrink
Package Quantity per kit
PART DESCRIPTION UFCTB-AXBHH1X
Port L, LM, T, S, B
Port count 1, 1, 2, 10, 16
Product Family A Length Single Stack with Basket
Product Group UFC Tubed Closure
Qty Trays 6

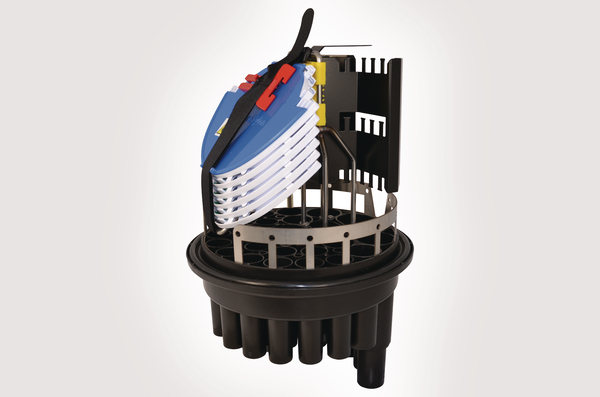

Technical Description The UFC A Length Single Stack closure with Basket is available with a Cablelok (Polypropylene) or Heatshrink (ABS/PA) base. The base configuration of 28 round ports and 2 oval ports covers a cable diameter range of 4.0 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting and support system is manufactured from Grade 304 stainless steel and can accommodate up to 6 Hellipse NZDF SE-A or SMF SE-A trays giving a maximum of 72 fibre splices based on 12 fibres per tray (when using Hellipse NZDF SE_A trays). The tubed closure and position of the mounting system allows for ease of access and traceability of the fibre into the trays and the basket provides storage space for the storage of fibre loops. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and into the trays.
Type of Tray Hellipse SMF SE-A

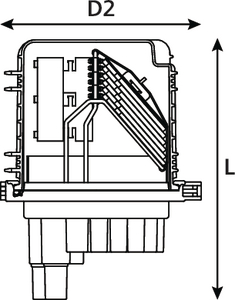

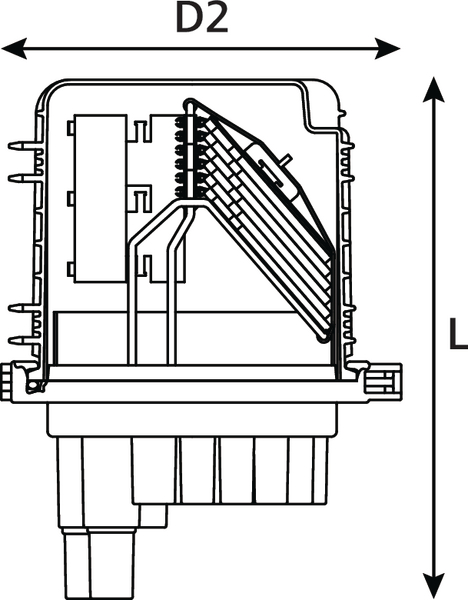

Length (mm) 400mm
Width D1 275mm
Width D2 310mm
GTIN-13 / EAN 5022660111419
ETIM 7.0 Key EC001124
