UFC Integrated Routing Closure : UFCIR-BCBCSX

BC Length Single Stack with BasketNimikenumero: 857-02079

Ominaisuudet ja edut

  • Maximum 432 fibre splice capacity
  • 28 round ports and 2 oval ports
  • Positive fibre management to ensure consistent 30mm minimum fibre bend radius throughout
  • Fibre storage basket for loop through applications
  • Bi-directional fibre routing
  • Supplied with 18 SE-IR MKI trays with ANT/Crimp splice bridges
  • Maximum 24 splices per tray without double stacking
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional pressure release valve
Colour Black (BK)
Content UFC IR Base
Anchor Rings (Inner and Outer)
BC-Length Cover (Dome)
Quick Release Clamp
Sealing ‘O’ Ring
Fibre Storage Basket
Fibre Optic Routing Module
Fibre Optic Storage Unit
Fibre Optic Storage Unit Lid
Fibre Slot Entry Module
Fibre Slot Retaining Block
18 x SE-IR Trays with Crimp/ANT Splice Bridges
Tray Lid
Tray Tool
Anchor Fixing Kit (3)
Reusable Cable Ties
Spiral Binding
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Marker Kit
Red Marker 1 – 12
Green Marker 1 – 12
Cover Type BC
Method of Sealing Cablelok
Package Content in box
PART DESCRIPTION UFCIR-BCBCSX
Port L, LM, T, S, B
Port count 1, 1, 2, 10, 16
Product Family BC Length Single Stack with Basket
Product Group UFC Integrated Routing Closure
Qty Trays 18
Splice Capacity 432

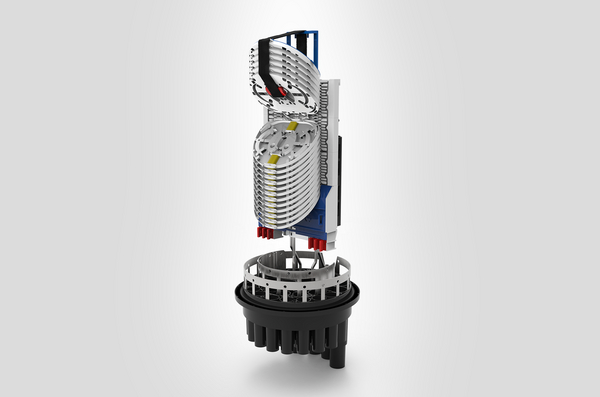

Technical Description The UFC Integrated Routing (IR) BC Length Single Stack closure with basket is available with a Cablelok (Polypropylene) or Heatshrink (Flame Retardant Polypropylene) base. The base configuration of 28 round ports and 2 oval ports covers a cable diameter range of 4.0 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 18 SE-IR MKI Crimp/ANT Splice Trays. The position of the mounting system allows easy access for the routing of the fibre on to the trays and the basket provides storage space for the storage of fibre loops. The trays and fibre optic routing module are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide fibre elements in to the IR system, the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre slot retaining block and tray retaining clips are coloured red to aid in identification if they are dropped.
Type of Tray Integrated Routing SE, 250µm
Variant Outdoor FTTx Enclosures
Length (mm) 598mm
Width D1 275mm
Width D2 310mm
Material Polypropylene (PP)
Country of Origin GB
GTIN-13 / EAN 5022660175190
Packaging 1 - Height (m) 0.313m
Packaging 1 - Length (m) 0.728m
Packaging 1 - Qty 1
Packaging 1 - Type box
Packaging 1 - Volume (m³) 0.07337
Packaging 1 - Weight (kg) 7.2kg
Packaging 1 - Width (m) 0.322m
ETIM 7.0 Key EC001124
