04/12/2021

RapidNet Accessories : RNADUXX-PA1URS-XX.XX

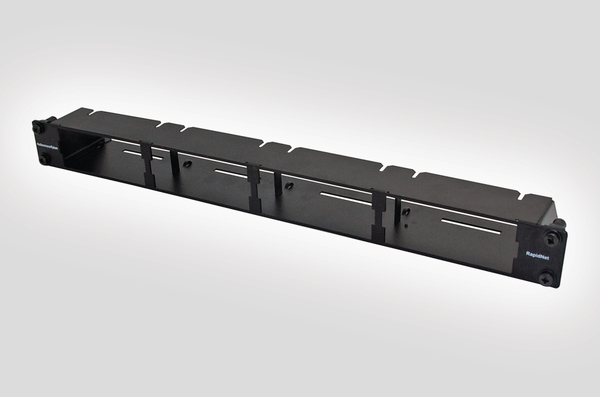

1U 12 Port Cassette PanelNimikenumero: 859-30033

Ominaisuudet ja edut

  • Fits all 19" racks, frames and cabinets
  • Supplied with Rack Snaps as standard
  • Simple, easy insertion with push down clip
  • Accommodates 4 cassettes presenting 48 RJ45 ports
  • Labelling software with Alpha Label
Colour Black (BK)
PART DESCRIPTION RNADUXX-PA1URS-XX.XX
Port count 48
Product Description The 12 port RapidNet Patch Panel accommodates four 12 port copper cassettes. The 48 port panel offers labelling fields on each of the 12 port cassettes. The RapidNet Cassettes simply push into the panels, snapping in with a push down clip. A fully loaded panel presents 48 Category 6 or Category 5e RJ45 ports.
Product Family 1U 12 Port Cassette Panel
Product Group RapidNet Accessories
Technical Description The RapidNet Patch Panel frame is manufactured from powder coated mild steel to the standard 19" width and is available in 1U option. The panel is supplied with Rack Snaps as standard, panels can also be supplied with Cage Nuts, screw fixings or without fixings if required. The 12 port Cassette labelling can be customised using Alpha Label software available at www.htdata.co.uk
Depth (D) 72mm

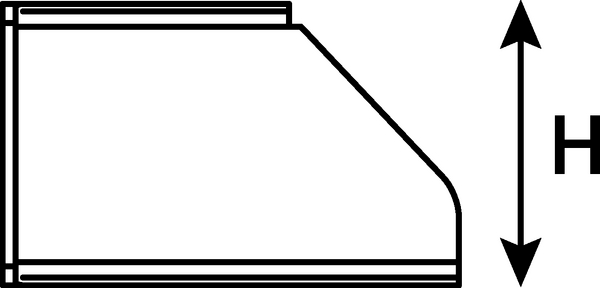

Height (H) 44mm
Width (W) 484mm
ELV compliant (Article 4 - 2) YES
Dimensions W x H x D 484 mm x 44 mm x 72 mm
GTIN-13 / EAN 5022660905902
Packaging 1 - Qty 1
Packaging 2 - Qty 0
Packaging 3 - Qty 0
Packaging 4 - Qty 0
