RapidNet 6 Port Category 6A FTP : RN06G6A-CAPLXX-10.0M
Cassette to RJ45 PlugNimikenumero: 859-36882
Ominaisuudet ja edut
- Exceeds Category 6A performance standards
- 24 Ports in 1U
- Factory pre-terminated and tested
- Reduce installation times by up to 85%
- Ideal solution when connecting with active equipment
- Backward compatible with Category 6, Category 5e, Category 5 and voice
Muita saman tuoteryhmän tuotteita
RapidNet 6 Port Category 6A FTP >| Colour | Violet (VT) |
| Local order number | RN06G6A-CAPLXX-10.0M |
| Pack Cont. | 10m |
| PART DESCRIPTION | RN06G6A-CAPLXX-10.0M |
| Performance Category | Category 6A (Class EA) |
| Port count | 6 |

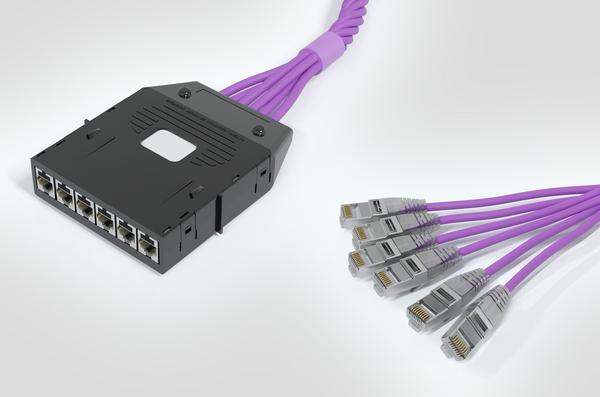

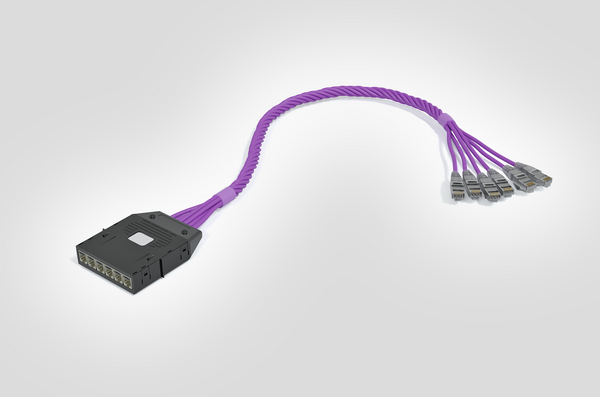

| Product Description | The FTP Cassette to RJ45 Plug is pre-terminated with 6 FTP Keystone Jacks earthed to a plate within the cassette at one end and 6 RJ45 Plugs at the other. The 6 port FTP Cassette presents 6 RJ45 ports in one cassette, with 4 cassettes fitting into the FTP RapidNet Patch Panel. The cassettes simply push into the panel, snapping with a releasable clip and a fully loaded panel presents 24 ports in 1U of space. The Cassette to RJ45 Plug was designed as a cross-connect solution which simplifies the management of connections to each unit without accessing the rear of the data cabinets when used for server connectivity. |
| Product Family | Cassette to RJ45 Plug |
| Product Group | RapidNet 6 Port Category 6A FTP |
| Technical Description | The FTP Copper solution is designed using U-FTP Category 6A cable which provides 360° shielding and eliminates alien crosstalk. An integral earthing plate grounds each Keystone Jack helping to guarantee 10G performance by giving continuity of the 360° shielding, the earth plate in the cassette then makes contact with the earth points on the RapidNet panel. The FTP cassette is manufactured with a simple push clip mechanism and polarising pips to prevent incorrect insertion. Rear cable management is provided within the RapidNet Cassette with integral strain relief which provides protection to all the cables and their terminations. All RapidNet terminations are tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568 – C Category 6A standards. All RapidNet Category 6A cables are made with LS0H material, complying with the latest European fire ratings. NB. Part Number is given for a 10m loom as an example. Lengths are available from 1m to 70m. |

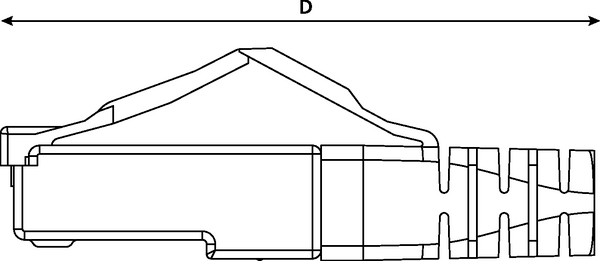

| Depth (D) | 130mm |

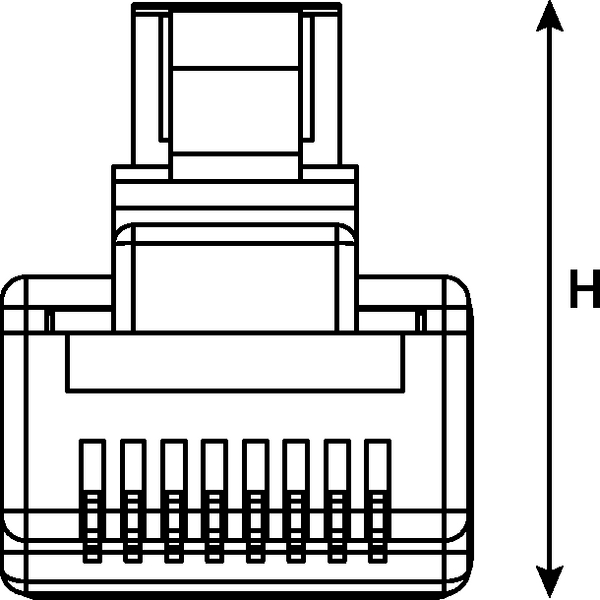

| Height (H) | 27mm |
| Length (L) | 10m |

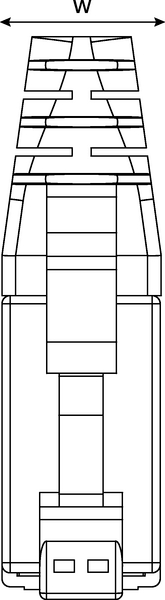

| Width (W) | 107mm |

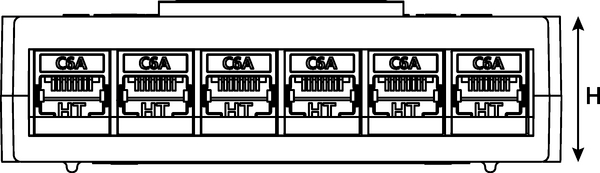

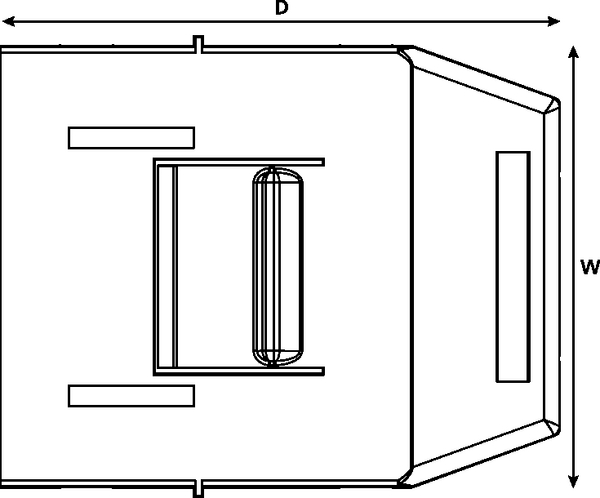

| Dimensions W x H x D | 107 mm x 27 mm x 130 mm |
| GTIN-13 / EAN | 5022660919763 |
