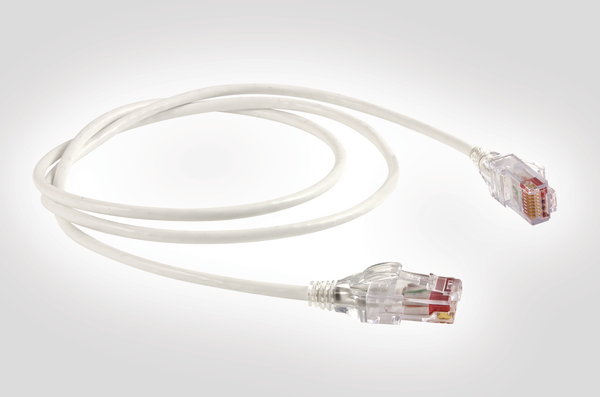

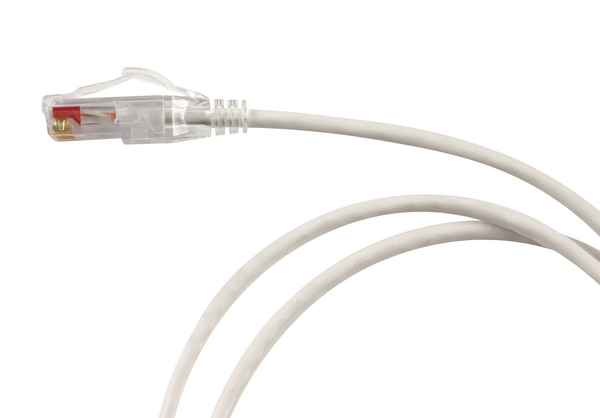

Copper Patch Leads : RJ45SPC6-05.0M/WH

Category 6 LS0H Slim DiameterNimikenumero: 851-16321

Ominaisuudet ja edut

  • Meets Category 6 performance standards
  • Slim diameter (28 AWG) cable allows increased density
  • Pre-tested with test results supplied
  • LS0H sheath
  • Available in standard lengths 1m, 2m, 3m, 5m and 10m
  • Non-standard lengths available on request
Colour White (WH)
Pack Cont. 5.0m
Package Content in bag
Performance Category Category 6 (Class E)
Product Description Category 6 Slim Diameter Copper Patch Leads are a critical component ensuring the end to end performance of a network. The Category 6 Slim Diameter Patch Leads incorporate a low profile plug suitable for high density applications with an integral strain relief boot to minimise force on terminations and to assist in managing the bend radius of the cable.
Product Family Category 6 LS0H Slim Diameter
Product Group Copper Patch Leads

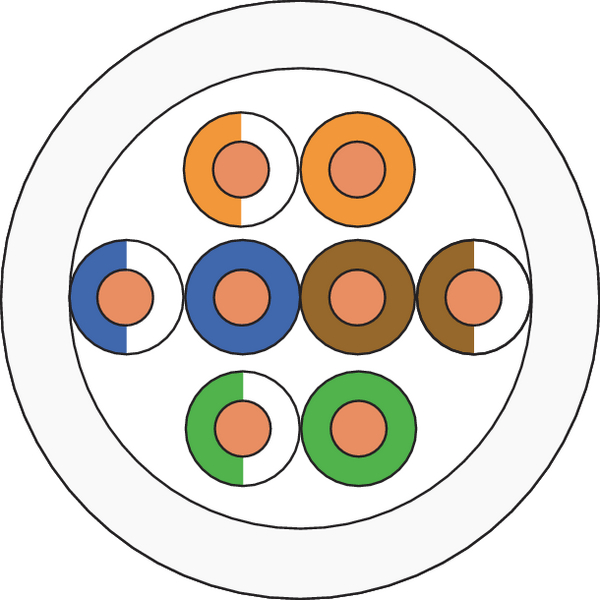

Technical Description The 28 AWG cable consists of 8 colour coded copper conductors twisted together to form 4 pairs with varying lay lengths. The cable is sheathed in LS0H material making the patch leads suitable for internal use. HellermannTyton's Slim Diameter Patch Leads are manufactured to the highest quality and tested to meet the latest published versions of ISO/IEC 11801 and BS/EN 50173 for a permanent link channel length of up to 95m. NB: Part numbers shown are for standard lengths and colours, other lengths and colours are available.
Length (L) 5.0m
Country of Origin GB
GTIN-13 / EAN 5022660132940
