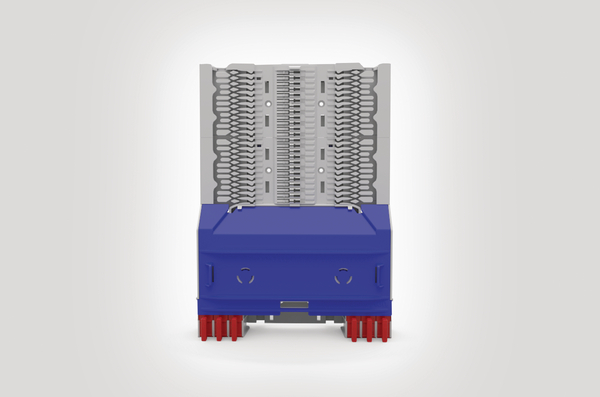

Integrated Routing Module : HTIR-12-XX

Integrated Routing Fibre EnclosuresNimikenumero: 857-00596

Ominaisuudet ja edut

  • Maximum 432 fibre splice capacity
  • Positive fibre management to ensure consistent 30mm minimum fibre bend radii throughout
  • Fibre storage area
  • Bi-directional fibre routing
  • Accommodates both SC-IR and SE-IR trays
  • Modular design allows for easy addition of trays
  • Splitter accommodation
  • System supplied unloaded (without trays) to allow for customisation and future expansion
Content Fibre Optic Routing Module
Fibre Optic Storage Unit
Fibre Optic Storage Unit Lid
Fibre Slot Entry Module
Fibre Slot Retaining Block
Form Tray Lid
Package Quantity per box
Product Family Integrated Routing Fibre Enclosures
Product Group Integrated Routing Module
Qty Trays 12(SE) or 24(SC)
Splice Capacity 144(SE) or 96(SC)
Technical Description The Integrated Routing Module has been designed for mounting in cabinets and wall boxes. The system is available in six different lengths, the longest of which can accommodate 72 SC-IR and 36 SE-IR trays (not included). The modular design of the system allows for additional trays to be easily clipped in to place with dedicated locations for the SE-IR or SC-IR trays (or a combination of SE and SC trays). The system allows for easy routing of fibre in to the trays and the fibre storage unit has a large capacity to allow for the storage of spare fibre. The fibre optic routing modules are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. The fibre slot retaining block guides fibre elements into the IR system, the foam pad retainer is partially cut through to accommodate a range of fibre counts. All IR System cover plates are coloured blue identifying them as removable parts to access the fibre and the fibre slot retaining block and tray retaining clips are coloured red to aid in identification if they are dropped.

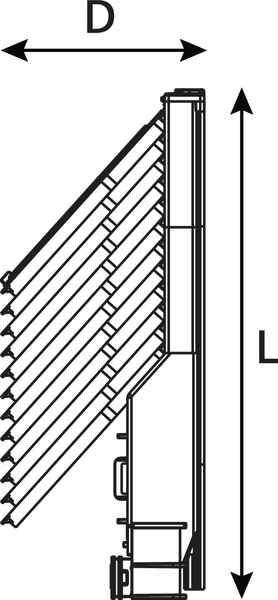

Depth (D) 120mm
Length (mm) 250mm

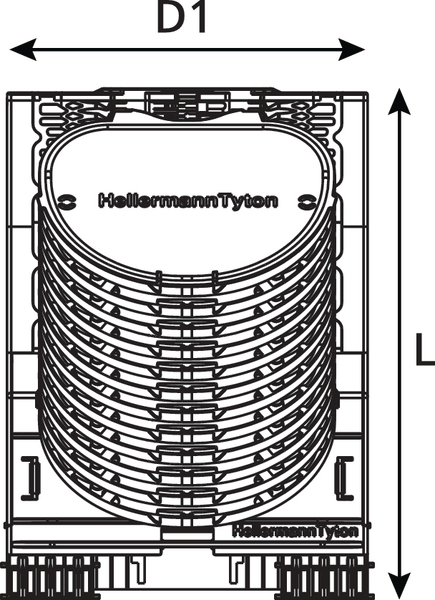

Width D1 186mm
GTIN-13 / EAN 5022660106194
