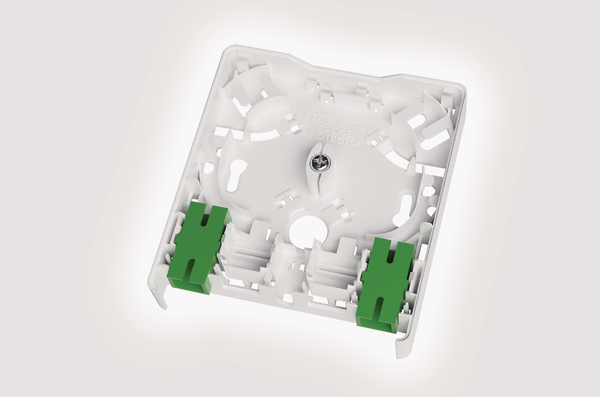

Fibre Wall Outlet : FWOA-VX-VX/WH

Fibre Optic Internal EnclosureNimikenumero: 857-01094

Ominaisuudet ja edut

  • 2 x SC APC Simplex Adaptors
  • Install directly on the wall or onto a flush-mount back box
  • Cable entry at the base, through the rear of the unit or at the sides
  • Accommodates up to 4 splice protectors (up to 45mm)
  • Quality surface finish
  • Tamper-proof latches
  • Positive fibre management to ensure a 30mm minimum bend radius


The wall mounted fibre optic outlet allows a fibre optic cable to be connected directly into the end user apartment.

Colour White (WH)
Connector Colour Green (GN)
Connector Type SC-APC
Content Fibre Wall Outlet
2 x SC APC Simplex Adaptors
Wall Mounting Kit
Product Description FWO with 2 x SC SX APC Adaptors.
Product Family Fibre Optic Internal Enclosure
Product Group Fibre Wall Outlet
Splice Capacity 4
Technical Description The closure is manufactured from ABS plastic and tamper proof latches secure the cover to the base. The closure has 2 bottom and 1 rear cable entry point. The closure is supplied with two SC APC Simplex fibre adaptors. Fibre management features ensure a minimum bend radius of 25mm is maintained as the bare fibre is routed through the outlet and press fit strain relief features secure the incoming cable whilst cable tie anchor points are provided for additional strain relief. Screw holes allow for easy installation and positioning, alternatively the recessed base means the closure can be fastened with adhesive, maintaining the outlet flush to the wall.
Depth (D) 21mm
Height (H) 85mm
Width (W) 85mm
Material Acrylonitrile Butadiene Styrene (ABS)
GTIN-13 / EAN 5022660151941
