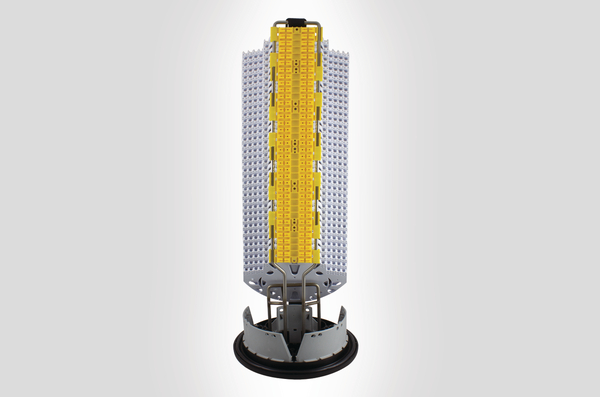

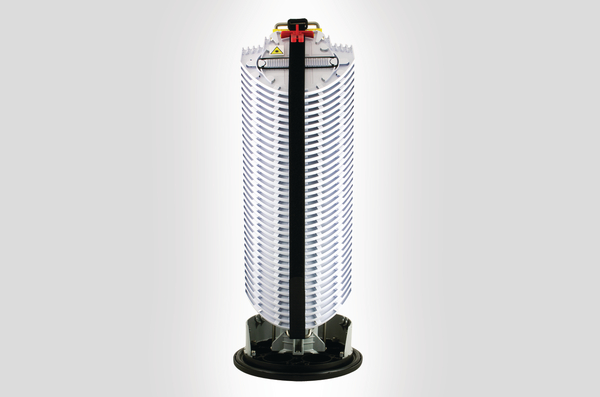

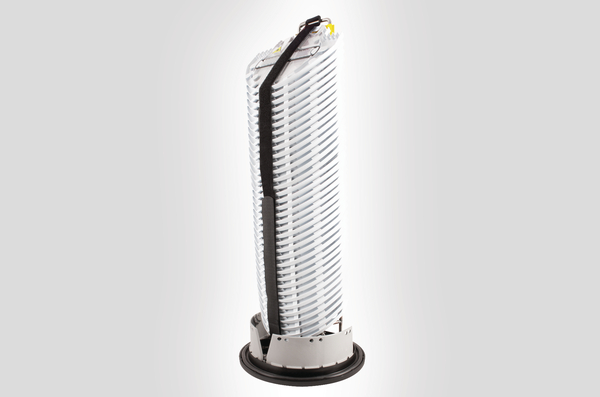

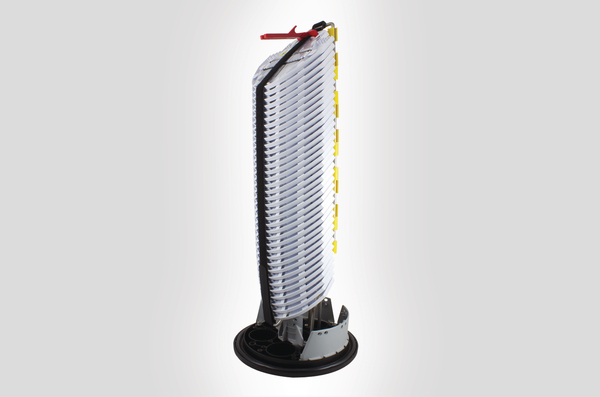

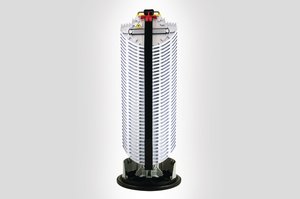

FML C length tubed closure with 36 NZDF SE-B trays fitted with 2 x 3A splice bridges
Nimikenumero 857-00682 | FMLTB-CXXCE61 Yksityiskohdat

  • Maximum 432 fibre splice capacity
  • 12 round ports and 1 oval port
  • Pre-tubed to trays to allow for easy insertion of fibre
  • Supplied with 36 NZDF SE-B Trays fitted with 2 x 3A (Green) splice
  • Maximum 12 splices per tray
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
  • Optional flash test valve and/or grounding feed-through
Näytä enemmän
Colour Black (BK)
Content FML Base
Anchor Plates/Bracket
C-Length Cover (Dome)
Quick Release Clamp
Sealing ’O’ Ring
Tray Support Frame
Anchor Fixing Kit (3)
36 x NZDF SE-B 3A Splice Trays
Tray Tool
Hook and Loop Tray Securing Straps
Transportation Tubing
Tubefix – Tubing to Tray Securing Blocks
Hook and Loop Management Ties
Marker Kit (NZDF SE-B/SMF SE-B)
Red Marker 1 - 48
Green Marker 1 – 48
Marker Kit (Hellamass Large)
Red Marker 1 - 25
Green Marker 1 – 25
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Cover Type C
Method of Sealing Cablelok, Heatshrink
Package Content packed in kit
PART DESCRIPTION FMLTB-CXXCE61
Port L, T, S, B
Port count 1, 2, 6, 4
Product Family C Length
Product Group FML Tubed Closure
Qty Trays 36
Short Description FML C length tubed closure with 36 NZDF SE-B trays fitted with 2 x 3A splice bridges
Splice Capacity 432
Technical Description The FML C Length closure is supplied with a Polypropylene base. The base configuration of 12 round ports and 1 oval port covers a cable diameter range of 4.8 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and the backplane is an aluminium extrusion which manages 36 NZDF SE-B 3A splice trays giving a maximum of 432 fibre splices based on 12 splices per tray The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
Type of Tray Hellipse NZDF SE-B

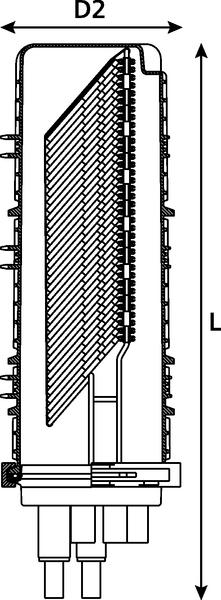

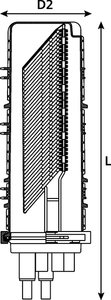

Length (mm) 748mm
Width D1 220mm
Width D2 275mm
Country of Origin GB
GTIN-13 / EAN 5022660112942
ETIM 7.0 Key EC002067
ETIM 8.0 Key EC002067
ETIM 9.0 Key EC002067
