Integrated Routing Fibre Enclosure with 12 SE-IR Trays
Nimikenumero 857-00822 | ENIR-AXX-12SE Yksityiskohdat

  • Maximum 144 fibre splice capacity
  • Positive fibre management to ensure consistent 30mm minimum fibre bend radii throughout
  • Fibre management system and storage area
  • Accommodates both SC-IR and SE-IR trays
  • Removable splice tray door aids installation of fibre
  • Twist lock compartment
Näytä enemmän
Colour White (WH)
Content Fibre Management System
12 SE-IR or 24 SC-IR Trays
Fibre Optic Routing Module
Fibre Optic Storage Unit
Fibre Optic Storage Unit Lid
Fibre Slot Entry Module
Fibre Slot Retaining Block
Tray Lid
Package Content packed in kit
PART DESCRIPTION ENIR-AXX-12SE
Product Family Fibre Optic Internal Enclosure
Product Group Integrated Routing Fibre Enclosure
Qty Trays 12

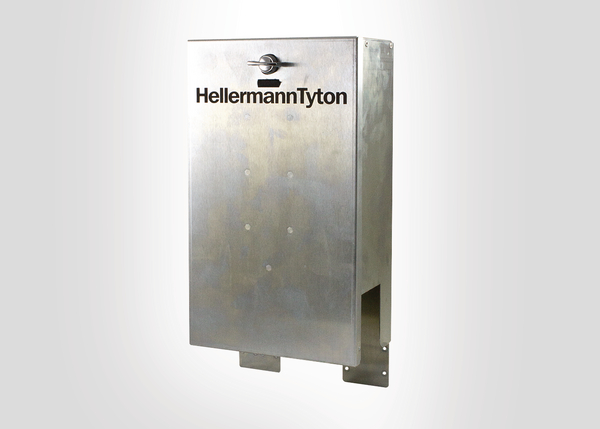

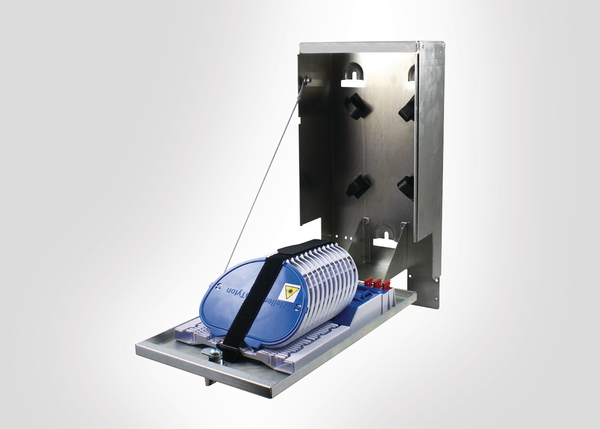

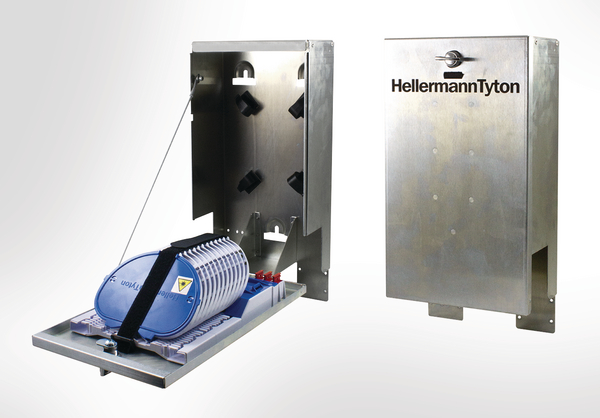

Short Description Integrated Routing Fibre Enclosure with 12 SE-IR Trays
Technical Description The Integrated Routing (IR) fibre enclosure is manufactured from zinc passivated mild steel and stainless steel. The closure has a separate entry and exit point allowing access for a maximum of 4 cables, each with a maximum diameter of 20mm (when used with the optional cable bridge clamp) . The design of the closure provides support for up to 56 5mm blown fibre tubes when utilising the bottom cable entry point in conjunction with the optional IR duct manager and foam fibre manager. The closure compartment accommodates a maximum of 24 SC-IR or 12 SE-IR trays (or a combination of SC and SE trays). The fibre management system allows the installer to organise and configure the fibre prior to routing it on to the trays. The modular design of the trays and the fibre optic routing module allow for the trays to be easily clipped into place. The system allows for easy routing of fibre on to the trays. The trays and fibre optic routing module are white which makes it easy to see the colour of the fibre elements as they are routed through the system. The fibre slot retaining blocks guide the fibre elements into the IR system, the foam pad on the retainer is partially cut through to accommodate a range of fibre counts, and the plug is keyed so that it can only be inserted in one direction. All the IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre slot retaining block and tray retaining clips are coloured red to aid in identification if they are dropped.
Type of Tray IR SE

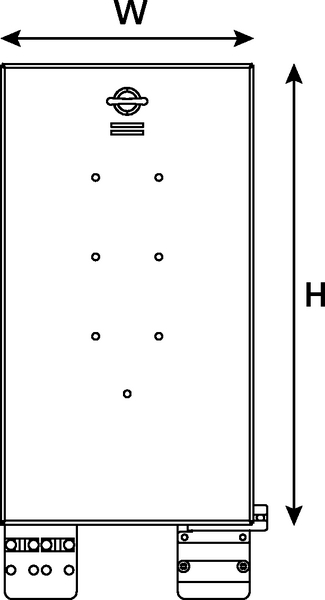

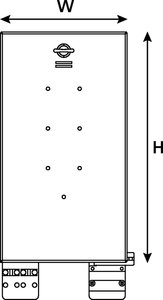

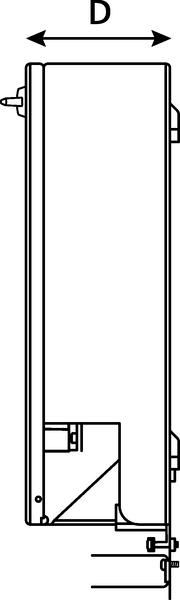

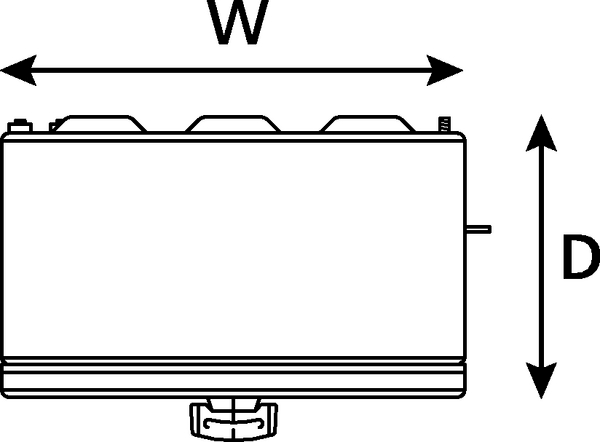

Depth (D) 120mm
Height (H) 490mm
Width (W) 200mm
Country of Origin GB
GTIN-13 / EAN 5022660115912
ETIM 7.0 Key EC002067
ETIM 8.0 Key EC002067
