CPU - Customer Premise Unit : CPU3862

Splice box, fibre optic, wall mounted, 4 cable entry pointsNimikenumero: 857-00349

Ominaisuudet ja edut

  • Maximum splice capacity of 24 fibres
  • 2 or 4 cable entry point options available
  • 2 piece box allows easy access to fibre
  • Cable loop storage capacity
  • IP56 rated
Cable ∅ max 14mm
Cable ∅ min 10mm
Colour Grey (GY)

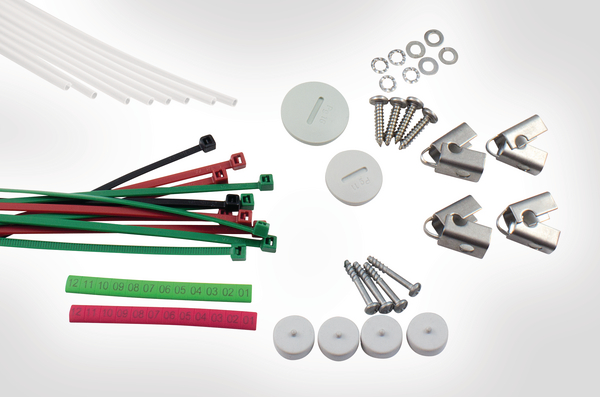

Content Customer Premise Unit Box
Hellafos Tray
Cable Loop Storage Spool
Cable Glands
Transport Tubing
Green 1 - 12
Red 1 - 12
Package Quantity per kit
Product Family Fibre Optic Internal Enclosure
Product Group CPU - Customer Premise Unit
Short Description Splice box, fibre optic, wall mounted, 4 cable entry points

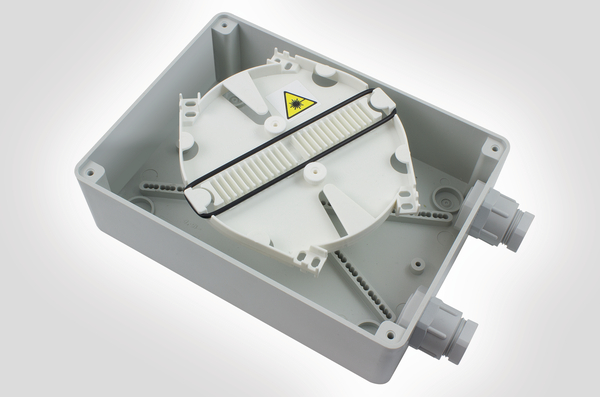

Technical Description The Customer Premise Unit has been designed for the organisation and protection of fibre optic splices in internal and sheltered environments. The 2 piece polystyrene box is available with either 2 or 4 cable entry points with a total of 4 entry points and cable gland size options to choose from. Each box is fitted with a single Hellafos splice tray which is mounted on a cable loop storage spool and can achieve a maximum 24 fibre splice capacity when using a 3A heatsrink splice protector.
Type of Gland PG16

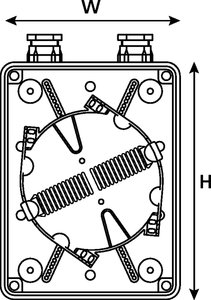

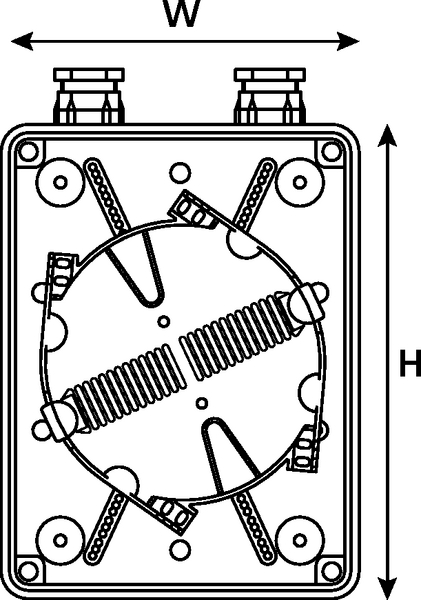

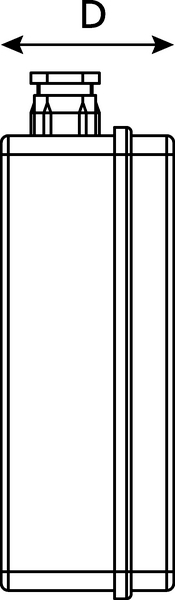

Depth (D) 80mm
Height (H) 195mm

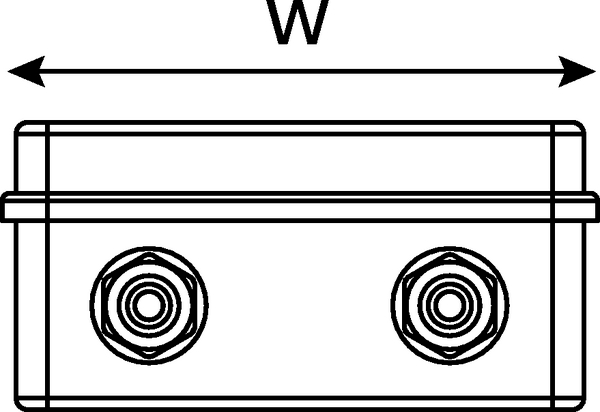

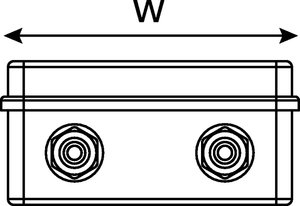

Width (W) 145mm
GTIN-13 / EAN 5022660984730
ETIM 7.0 Key EC002358
