General LAN Accessories : AS08/12ESFB

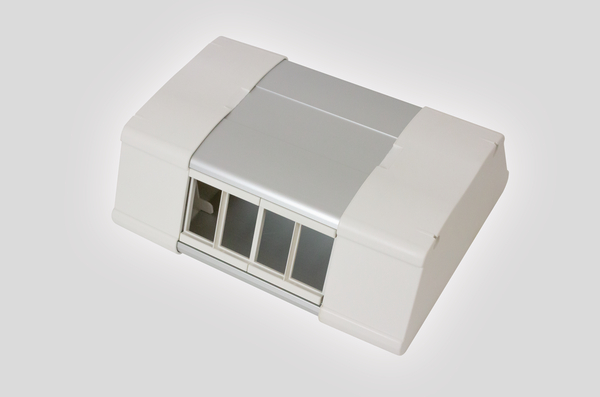

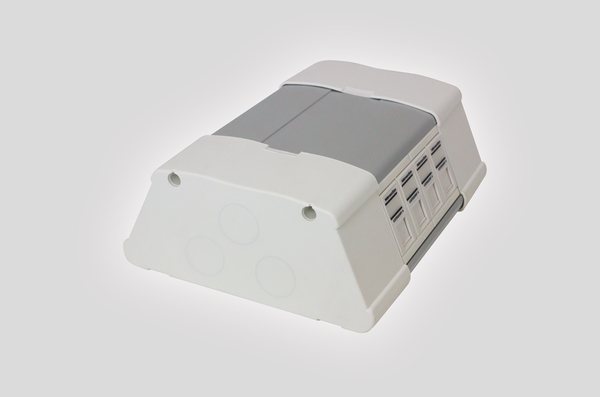

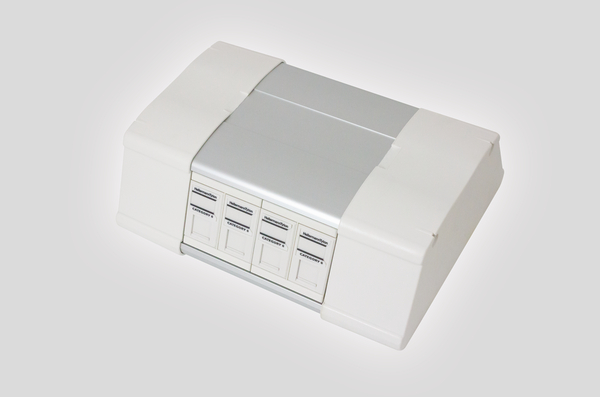

Sub Floor BoxNimikenumero: 854-15035

Ominaisuudet ja edut

  • Aluminium extrusion
  • Accepts single or triple Euro Outlets
  • Maximum of 12 x RJ45 outlets
  • Can be used with LJ6C adaptor
  • Cable knockouts at both ends 20/25mm
Colour White (WH)
Local order number AS08/12ESFB
Product Description The Sub Floor Box is an attractive easy to assemble design which can present up to 12 RJ45 outlets and is an ideal solution in any area where there is a raised floor.
Product Family Sub Floor Box
Product Group General LAN Accessories
Technical Description The sub floor box can accommodate up to 4 triple or 8 single Euro outlets or a mixture of both. Manufactured from aluminium the sub floor box has cable entry points at both ends which accept a maximum cable diameter of 25mm.
Depth (D) 205mm
Height (H) 70mm
Width (W) 160mm
Dimensions W x H x D 160 mm x 70 mm x 205 mm
GTIN-13 / EAN 5022660851643
