Patching Frames : 2PO-M15A45/BK

150mm Wide Vertical Cable ManagerNimikenumero: 854-05159

Ominaisuudet ja edut

  • 45U High
  • Two width options; 300mm or 150mm
  • Finger bar to the front for patch cord management
  • Multiple pass through and cable fixing points
  • Spool mounting option for improved fibre management
Colour Black (BK)
Pack Cont. 1pc.
Package Quantity per box

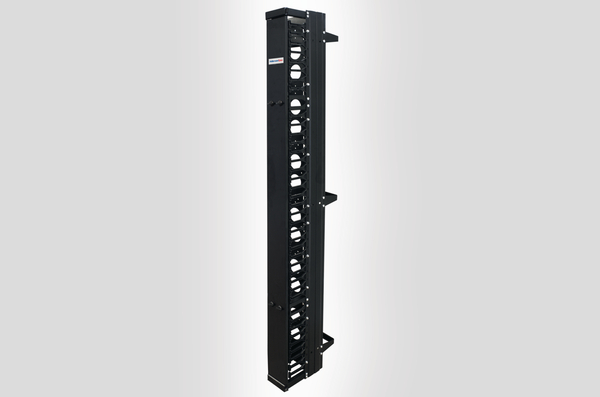

Product Description The HellermannTyton Vertical Cable Manager is 45U high and available in two width options, 300mm or 150mm, to suit the capacity and positioning of the 2 post patching frame. The front half of the cable manager is supplied with a detachable dual hinge door and finger bar to manage copper and fibre patch leads. The rear of the vertical cable manager is designed for backbone/trunk cabling and is fitted with three hinged retainers. The central divider has multiple pass through/access and retaining points for managing and securing cables. 80mm diameter fibre management spools are also available to aid the routing and storage of large volumes of fibre.
Product Family 150mm Wide Vertical Cable Manager
Product Group Patching Frames
Technical Description The HellermannTyton 2 post frame vertical cable managers are 45U high and manufactured from 3mm black powder coated mild steel. The cable manager is supplied pre-assembled and is fixed to the 2 post patching frame via four bolts.
Depth (D) 215mm
Height (H) 2127mm

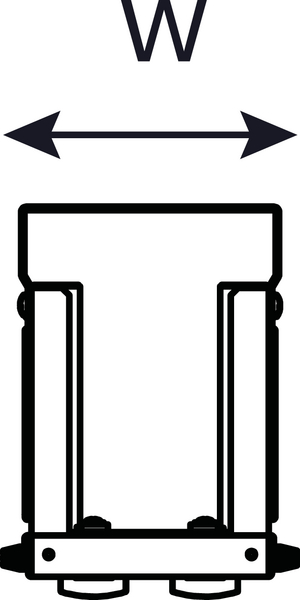

Width (W) 150mm
Dimensions W x H x D 150 mm x 2127 mm x 215 mm
GTIN-13 / EAN 5022660145162
ETIM 7.0 Key EC002624
