Patching Frames : 2PO-FRME45/BK

45U 2 Post Patching FrameNimikenumero: 854-05158

Ominaisuudet ja edut

  • 45U High, 19" Wide
  • Wide foot plate for added stability
  • Clear 'U' marking front and rear
  • Detachable dual hinged door
  • Simple bolt together assembly

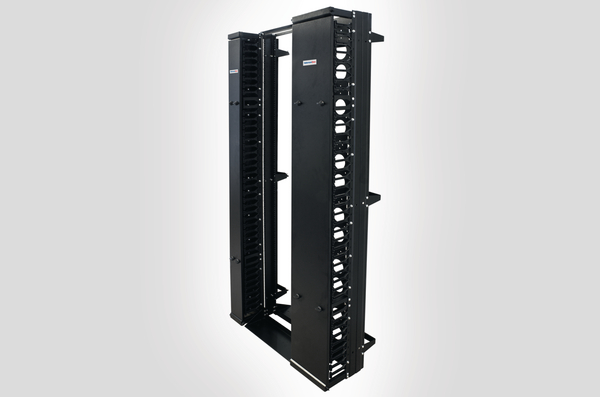

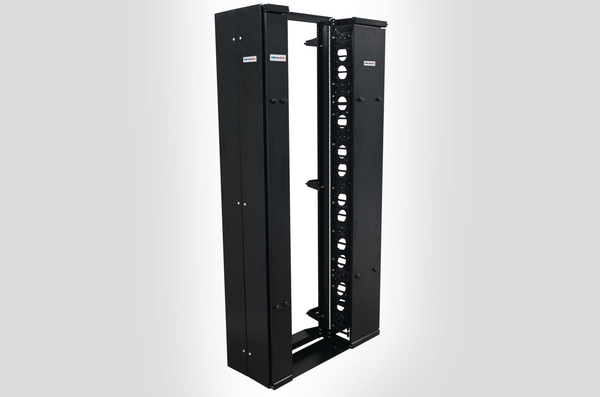

  • Vertical cable management options available
Colour Black (BK)
Pack Cont. 1pc.
Package Quantity per box

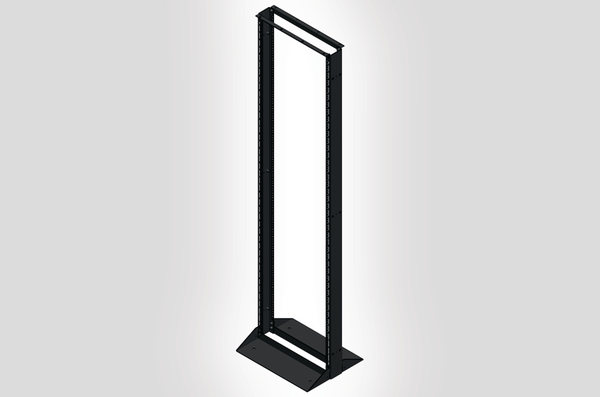

Product Description The HellermannTyton 2 post patching frame is a 19" wide, 45U high floor standing unit. The wide foot plate ensures good stability and the uprights are double folded to provide additional rigidity. For hardware and patch panel mounting the frame uses Rack Snaps or cage nuts which are also available from HellermannTyton. The patching frame accommodates the full range of HellermannTyton panels and includes six earthing points to support shielded system installations. A range of vertical cable managers, end panel and fibre management accessories are available.
Product Family 45U 2 Post Patching Frame
Product Group Patching Frames
Technical Description The HellermannTyton 2 post patching frame is manufactured from 2mm black powder coated mild steel. The frame is supplied flat packed and is a simple 12 bolt assembly (6 on each side) using captive nuts with mounting holes in the top of the frame for secondary fixing.

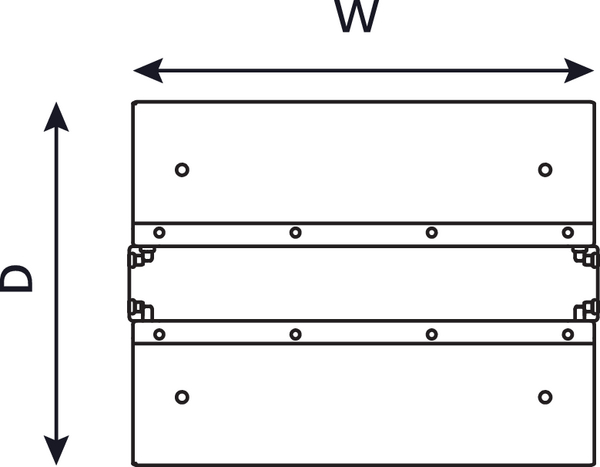

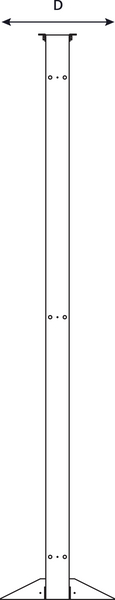

Depth (D) 400mm

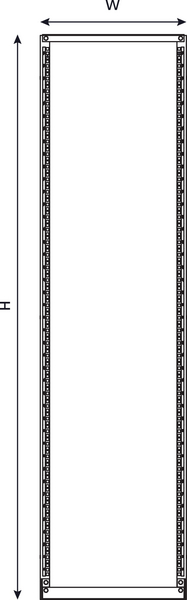

Height (H) 2127mm
Width (W) 516mm
Dimensions W x H x D 516 mm x 2127 mm x 400 mm
GTIN-13 / EAN 5022660151767
ETIM 7.0 Key EC002624
