Cable Management Accessories : 1CTV-P/RS/BK

1U and 2U Front Cable ManagmentNimikenumero: 854-05029

Ominaisuudet ja edut

  • Manages patch leads horizontally
  • 1U and 2U options available
  • 5 Plastic rings
  • Supplied with or without Rack Snap mounting fixings
Colour Black (BK)
Local order number 1CTV-P/RS/BK
Panel Fixing Method rack snap
PART DESCRIPTION 1CTV-P/RS/BK

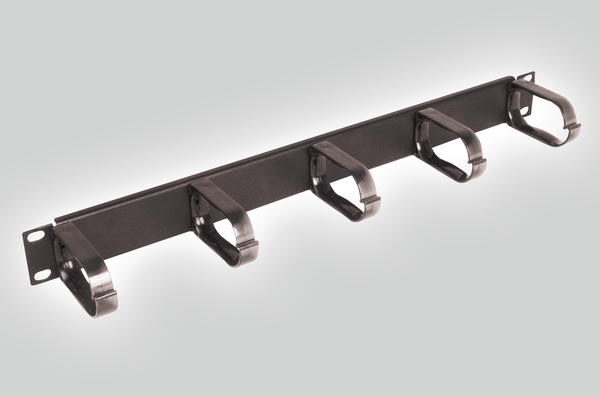

Product Description Cable management is an important part of any installation. The 1U and 2U front cable management panels come complete with five flexible plastic rings which are designed to aid installations by providing a speedy method of cable dressing.
Product Family 1U and 2U Front Cable Managment
Product Group Cable Management Accessories
Technical Description The front cable management panel is available in both 1U and 2U sizes. Each panel has 5 plastic rings, which hold and support the cables in position. It is recommended that there is provision for cable management for every 2U of cabling or patching in a cabinet or rack.

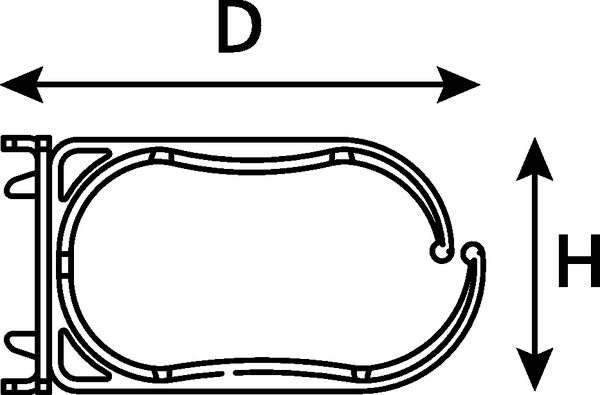

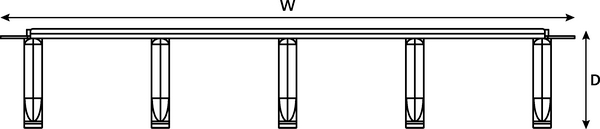

Depth (D) 75mm
Height (H) 44mm
Width (W) 484mm
ELV compliant (Article 4 - 2) YES
Dimensions W x H x D 484 mm x 44 mm x 75 mm
GTIN-13 / EAN 5022660849336
Packaging 1 - Qty 1
Packaging 1 - Weight (kg) 0.45kg
Packaging 2 - Qty 0
Packaging 3 - Qty 0
Packaging 4 - Qty 0
ETIM 7.0 Key EC002624
