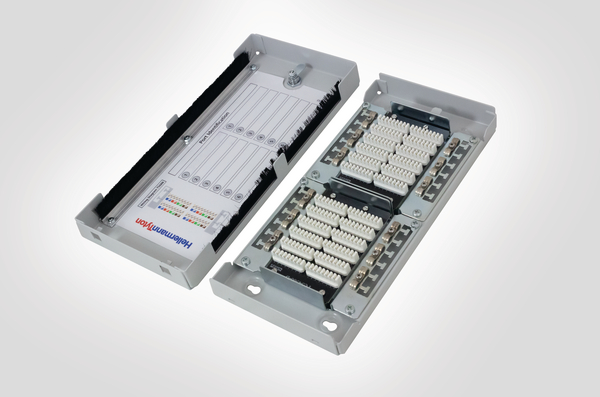

Shielded Zone Termination Box : ZTB12SC6XX/GY

Consolidation Points and EnclosuresNimikenumero: 854-20029

Ominaisuudet ja edut

  • Supports Category 6 and Category 5e

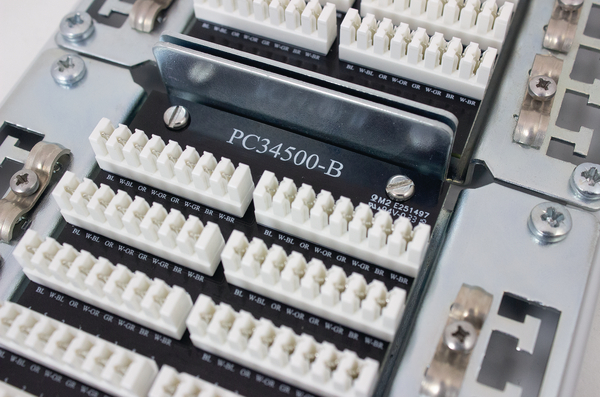

  • HellermannTyton’s Optimised PCB design
  • Supports POE applications
  • Available in Unshielded or Shielded
  • Allows for up to 12 cable lines to be terminated
  • 1.5mm Mild Steel for added strength
  • Internal Steel cross-member supports for increased impact resistance
  • Compact size to allow for installation in restricted spaces

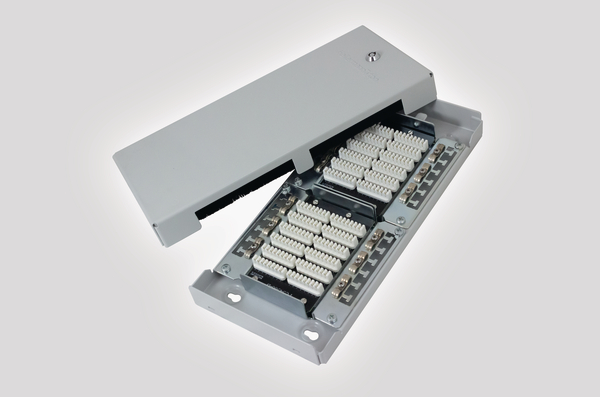

  • Removable lid for ease of termination
  • Lockable for security
  • Fixing points to allow for installation on walls/risers, in ceilings, floor or under desk
  • Grey powder coated finish for humidity and temperature protection
  • Brush strips for easy cable entry/exit and debris free operation
  • Integral cable anchor points
  • Shielded version comes with additional cable clamps to allow for correct shield bonding
  • Allows for flexibility within a structured cabling network with future ROI in regards to MAC’s
  • Port Identification Label
Colour Grey RAL 7035 (RAL7035)
Pack Cont. 1pc.
Package Quantity per box
Performance Category Category 6 (Class E)
Product Family Consolidation Points and Enclosures
Product Group Shielded Zone Termination Box
Short Description 12 Way Category 6 Zone Termination Box for ceiling void, raised floor, riser or under desk mounting.
Technical Description The Zone Termination Box (ZTB) from HellermannTyton Connectivity is a compact and robust internal consolidation point. The ZTB has been designed to work as part of a Zone Cabling topology which allows for more flexibility in regards to MAC’s within a structured cabling network. Alternatively it can be used when converting incoming external grade cable over to internal CPR compliant cable. As standard, the ZTB benefits from HellermannTyton Category 6 PCB technology (backwards compatible with Category 5e). Designed for high performance and reliability this product forms part of the HellermannTyton system warranty when installed by an accredited HellermannTyton installer. The shielded model allows for up to 12 cable lines to be terminated. The compact size of the ZTB means it can be easily fixed into a variety of small spaces in ceiling voids, raised floor, risers or even under the desk. The base and lid are made from 1.5mm thick mild steel and is supported by internal steel cross-members located on the PCB trays which ensure the ZTB is strong and robust enough to withstand possible damage within shared utility environments.
Depth (D) 138.6mm
Height (H) 36mm
Width (W) 294mm
Dimensions W x H x D 294 mm x 36 mm x 138.6 mm
GTIN-13 / EAN 5022660168987
